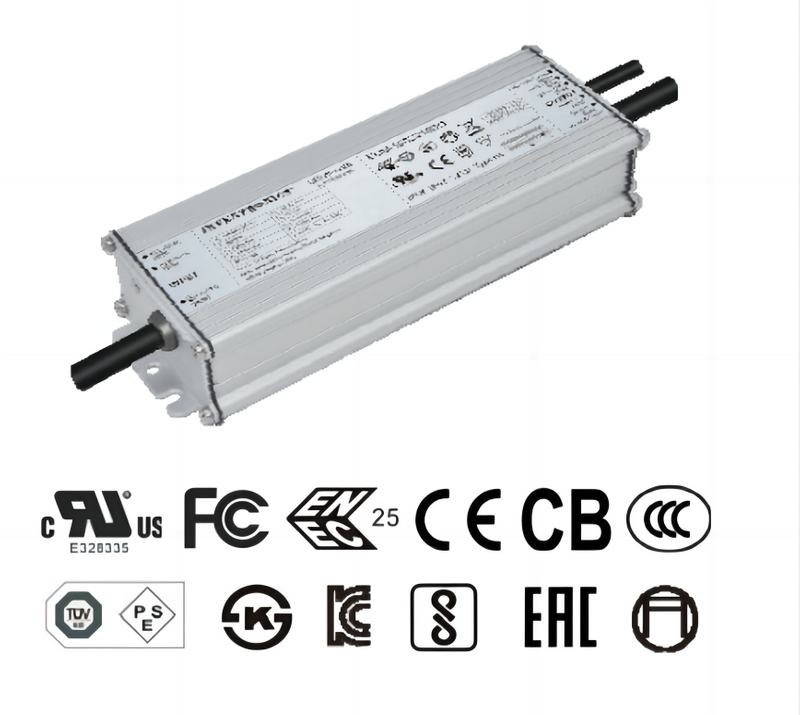

EUM-150S105DG
MT-LIGHTING
Features:
. Compact Metal Case with Excellent Thermal Performance
. Full Power at Wide Output Current Range (Constant Power)
. Adjustable Output Current (AOC) with Programmability
. Isolated 1-5V/1-10V/10V PWM/3-Timer-Modes Dimmable
. Output Lumen Compensation
. Input Surge Protection: DM 6kV, CM 10kV
. All-Around Protection: OVP, SCP, OTP
. IP66 / IP67 and UL Dry / Damp / Wet Location
. SELV Output
. TYPE HL, for use in a Class I, Division 2 hazardous(Classified) location
.5 Years Warranty
Description:
The EUM-150S105DG series is a 150W, constant-current, programmable IP67 LED driver that operates from
90-305Vac input with excellent power factor. It is created for many lighting applications including high bay, high
mast and roadway, etc. The high efficiency of these drivers and compact metal case enables them to run cooler,
significantly improving reliability and extending product life. To ensure trouble-free operation, protection is
provided against input surge, output over voltage, short circuit, and over temperature.

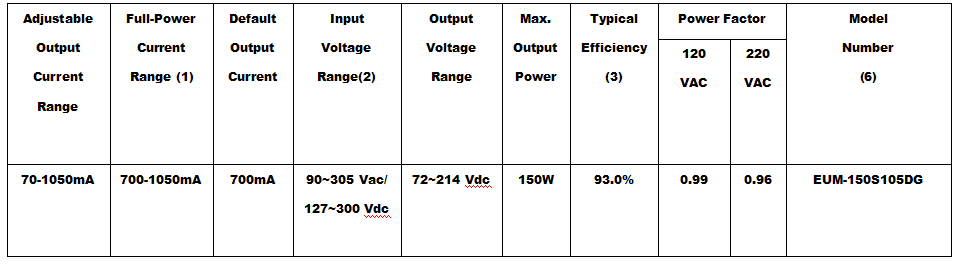

Models:
Adjustable Output Current Range
| Full-Power Current Range (1)
| Default Output Current
| Input Voltage Range(2) | Output Voltage Range | Max. Output Power | Typical Efficiency (3)
| Power Factor | Model Number (6)
| |
120 VAC | 220 VAC | ||||||||
70-1050mA
| 700-1050mA | 700mA | 90~305 Vac/ 127~300 Vdc
| 72~214 Vdc | 150W | 93.0% | 0.99 | 0.96 | EUM-150S105DG |
Notes:
(1) Output current range with constant power at 150W
(2) Certified input voltage range: UL, FCC 100-277Vac; otherwise 100-240Vac.
(3) Measured at 100% load and 220Vac input (see below “General Specifications” for details).
(4) SELV output.
(5) To order BIS approved model, please use suffix “DB” in place of “DG” (ex: EUM-150S105DB).
Input Specifications:
Features:
. Compact Metal Case with Excellent Thermal Performance
. Full Power at Wide Output Current Range (Constant Power)
. Adjustable Output Current (AOC) with Programmability
. Isolated 1-5V/1-10V/10V PWM/3-Timer-Modes Dimmable
. Output Lumen Compensation
. Input Surge Protection: DM 6kV, CM 10kV
. All-Around Protection: OVP, SCP, OTP
. IP66 / IP67 and UL Dry / Damp / Wet Location
. SELV Output
. TYPE HL, for use in a Class I, Division 2 hazardous(Classified) location
.5 Years Warranty
Description:
The EUM-150S105DG series is a 150W, constant-current, programmable IP67 LED driver that operates from
90-305Vac input with excellent power factor. It is created for many lighting applications including high bay, high
mast and roadway, etc. The high efficiency of these drivers and compact metal case enables them to run cooler,
significantly improving reliability and extending product life. To ensure trouble-free operation, protection is
provided against input surge, output over voltage, short circuit, and over temperature.
Models:
Adjustable Output Current Range
| Full-Power Current Range (1)
| Default Output Current
| Input Voltage Range(2) | Output Voltage Range | Max. Output Power | Typical Efficiency (3)
| Power Factor | Model Number (6)
| |
120 VAC | 220 VAC | ||||||||
70-1050mA
| 700-1050mA | 700mA | 90~305 Vac/ 127~300 Vdc
| 72~214 Vdc | 150W | 93.0% | 0.99 | 0.96 | EUM-150S105DG |
Notes:
(1) Output current range with constant power at 150W
(2) Certified input voltage range: UL, FCC 100-277Vac; otherwise 100-240Vac.
(3) Measured at 100% load and 220Vac input (see below “General Specifications” for details).
(4) SELV output.
(5) To order BIS approved model, please use suffix “DB” in place of “DG” (ex: EUM-150S105DB).
Input Specifications:
