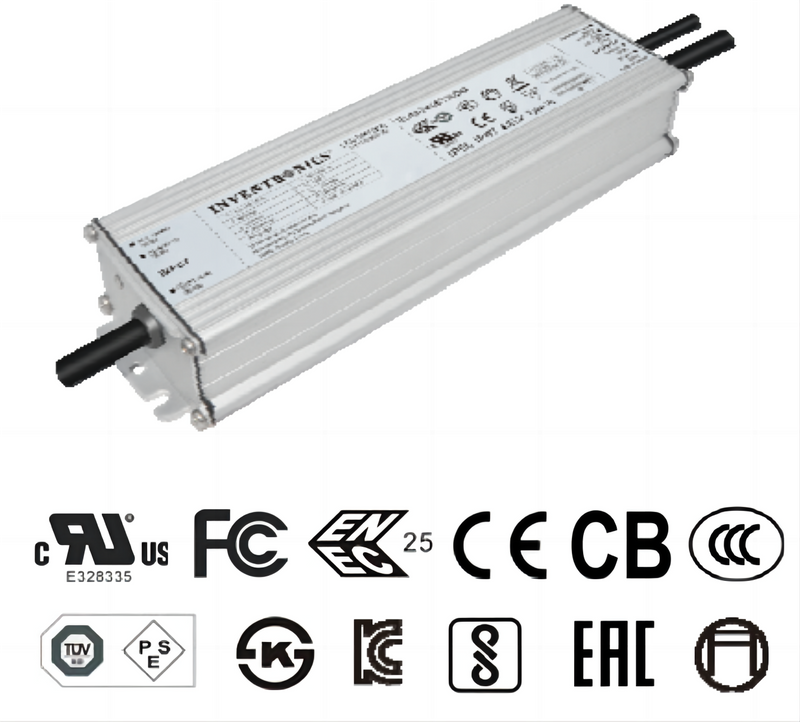

Inventronics EUM-240S105DG Led Driver

Features:

. Compact Metal Case with Excellent Thermal Performance

. Full Power at Wide Output Current Range (Constant Power)

. Adjustable Output Current (AOC) with Programmability

. Isolated 1-5V/1-10V/10V PWM/3-Timer-Modes Dimmable

. Output Lumen Compensation

. Input Surge Protection: DM 6 kV , CM 10 kV

. All-Around Protection: OVP, SCP, OTP

. IP66 / IP67 and UL Dry / Damp / Wet Location

. SELV Output

. TYPE HL, for use in a Class I, Division 2 hazardous (Classified) location

. Years Warranty

Description:

The EUM-240S105DG series is a 240W, constant-current, programmable IP67 LED driver that operates from

90-305Vac input with excellent power factor. It is created for many lighting applications including high bay, high

mast and roadway, etc. The high efficiency of these drivers and compact metal case enables them to run cooler,

significantly improving reliability and extending product life. To ensure trouble-free operation, protection is

provided against input surge, output over voltage, short circuit, and over temperature.

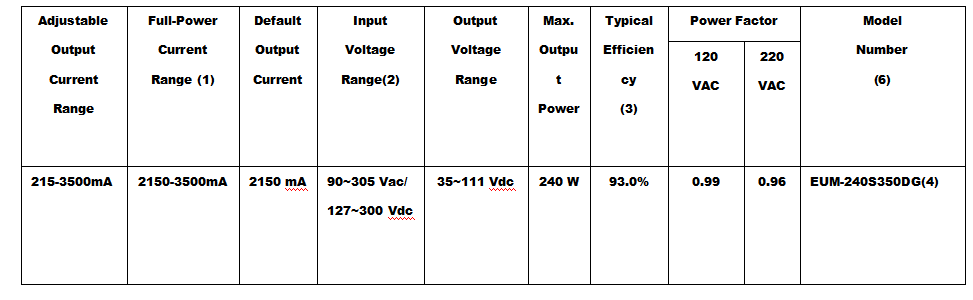

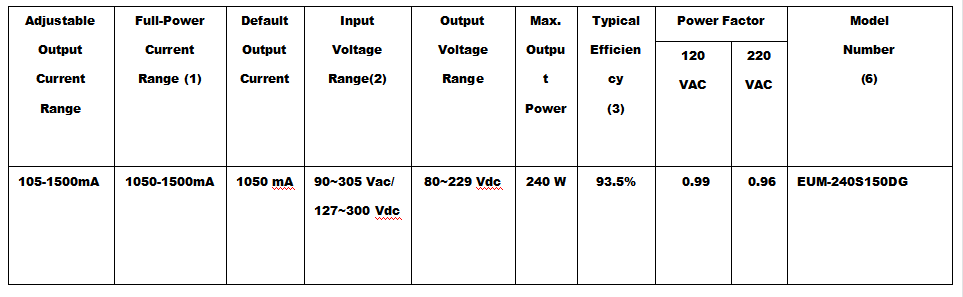

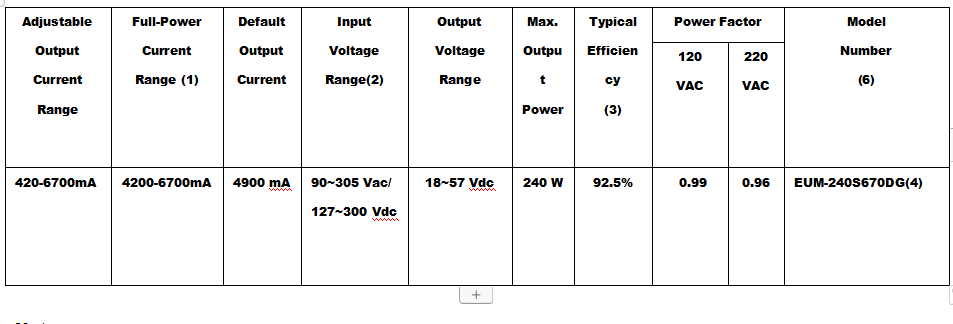

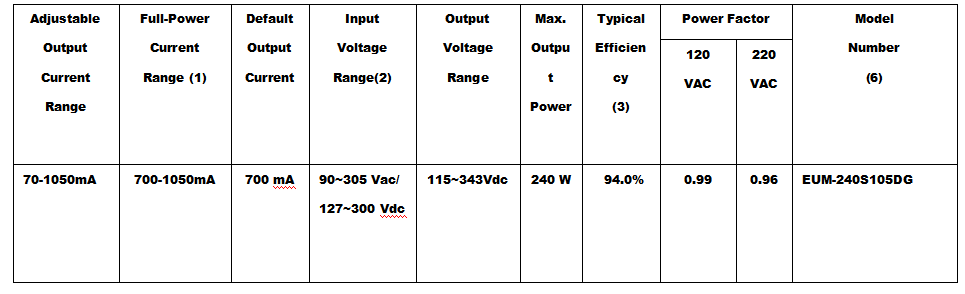

Models:
