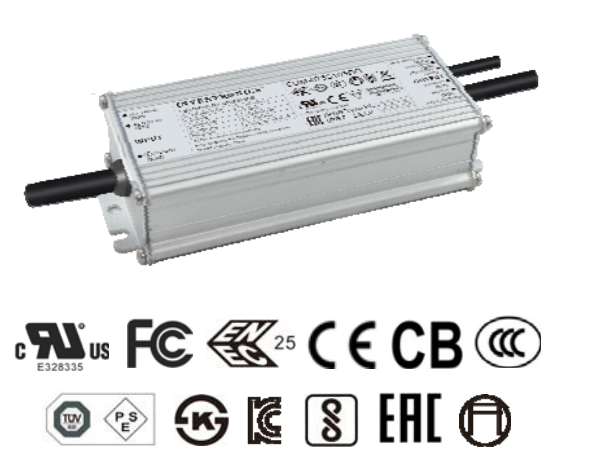

EUM-075S105DG
inventronics
Features:
. Compact Metal Case with Excellent Thermal Performance
.Full Power at Wide Output Current Range (Constant Power)
. Adjustable Output Current (AOC) with Programmability
. Isolated 1-5V/1-10V/10V PWM/3-Timer-Modes Dimmable
. Output Lumen Compensation
. Input Surge Protection: DM 6kV, CM 10kV
. All-Around Protection: OVP, SCP, OTP
. IP66 / IP67 and UL Dry / Damp / Wet Location
. Class 2 & SELV Output
. TYPE HL, for use in a Class I, Division 2 hazardous (Classified) location
.5 Years Warranty
Description:
The EUM-075S105DG series is a 75W, constant-current, programmable IP67 LED driver that operates from 90-
305Vac input with excellent power factor. It is created for many lighting applications including high bay, tunnel
and roadway lights, etc. The high efficiency of these drivers and compact metal case enables them to run cooler,
significantly improving reliability and extending product life. To ensure trouble-free operation, protection is
provided against input surge, output over voltage, short circuit, and over temperature.
Models:
Adjustable Output Current Range | Full-Power Current Range (1) | Default Output Current | Input Voltage Range(2) | Output Voltage Range | Max. Output Power | Typical Efficiency (3) | Power Factor | Model Number (6) | |
120 VAC | 220 VAC | ||||||||
70- 1050mA | 700-1050mA | 700 mA | 90~305Vac 127~250Vdc | 36~107Vdc | 75W | 90.5% | 0.99 | 0.96 | EUG-075S105DG |
